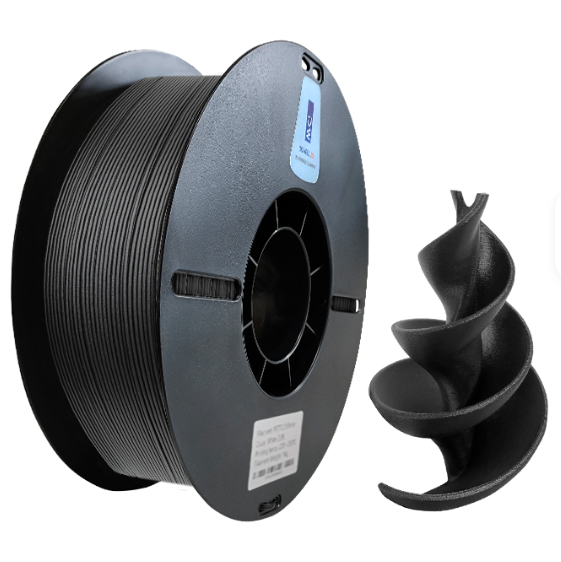

3D Filament ABS-CF High quality
3D Filament ABS-CF High quality
Kan beschikbaarheid voor afhalen niet laden
Wunderfull Performance: ABS-CF (Carbon Fiber) Filament
Elevate your 3D printing game with our High-Performance ABS-CF (Carbon Fiber Reinforced ABS) filament. Engineered for the most demanding applications, this material is the ultimate upgrade for printing functional prototypes, end-use parts, tooling, and fixtures that require exceptional strength and reliability.
By blending high-flow ABS with premium, high-modulus carbon fibers, we've created a composite material that delivers superior mechanical properties while maintaining printability. Say goodbye to excessive warping and hello to professional-grade results.

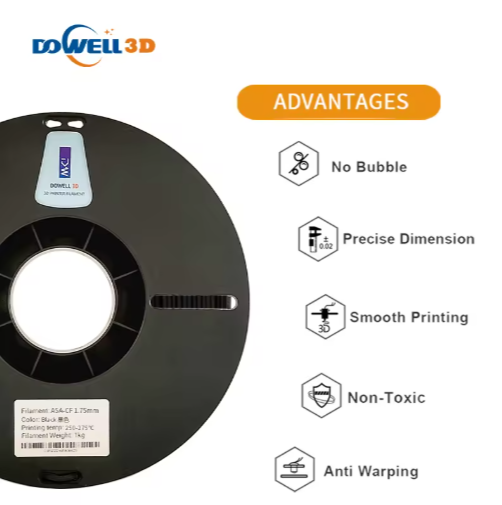

Key Features & Benefits
| Feature | Advantage |
| Exceptional Mechanical Strength | Significantly higher rigidity, strength, and impact resistance compared to standard ABS. |
| Superior Dimensional Stability | Low shrinkage and reduced warping make it easier to print large, complex, and high-precision parts. |
| Lightweight Durability | The carbon fiber reinforcement provides enhanced toughness and a higher strength-to-weight ratio, ideal for robotics and aerospace. |
| Stunning Matte Finish | The addition of carbon fiber creates a sophisticated, professional, and visually appealing matte black surface. |
| Worry-Free Printing | Consistent diameter accuracy (± 0.02mm) and excellent layer adhesion ensure smooth feeding and robust interlayer fusion. |

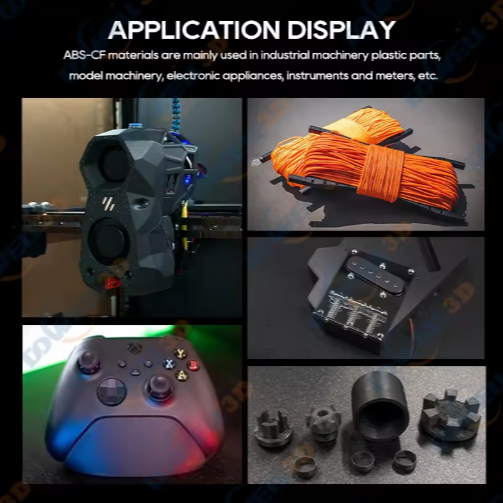

Ideal Applications
This ABS-CF filament is designed for applications where robust performance and precision are non-negotiable, including:
-
Functional Prototypes
-
Jigs, Fixtures, and Manufacturing Tools
-
Automotive & Drone Components
-
High-Precision Engineering Parts (Gears, Impellers)
-
Aerospace Applications
Recommended Print Settings
| Parameter | Recommendation |
| Filament Diameter | 1.75mm (± 0.02mm) |
| Printing Temperature | 220°C – 250°C |
| Bed Temperature | 60°C – 80°C |
| Print Speed | < 200 mm/s |
| Nozzle Requirement | Hardened Steel / Abrasion-Resistant Nozzle Recommended (Carbon fiber is abrasive and will quickly wear down standard brass nozzles. A 0.6mm nozzle diameter or larger is often preferred.) |
| Storage | Store in a dry environment (RH < 20%) and dry before use if exposed to moisture. |
Product Details
| Detail | Value |
| Material | ABS Carbon Fiber Composite (ABS-CF) |
| Color | Matte Black |
| Spool Weight | 1.0 kg (or specify the available weights) |
| Certifications | RoHS Compliant |
